XR2206 High Precision Function Signal Generator DIY Kit with User Manual Sine/Triangle/Square Wave Adjustable Frequency Amplitude

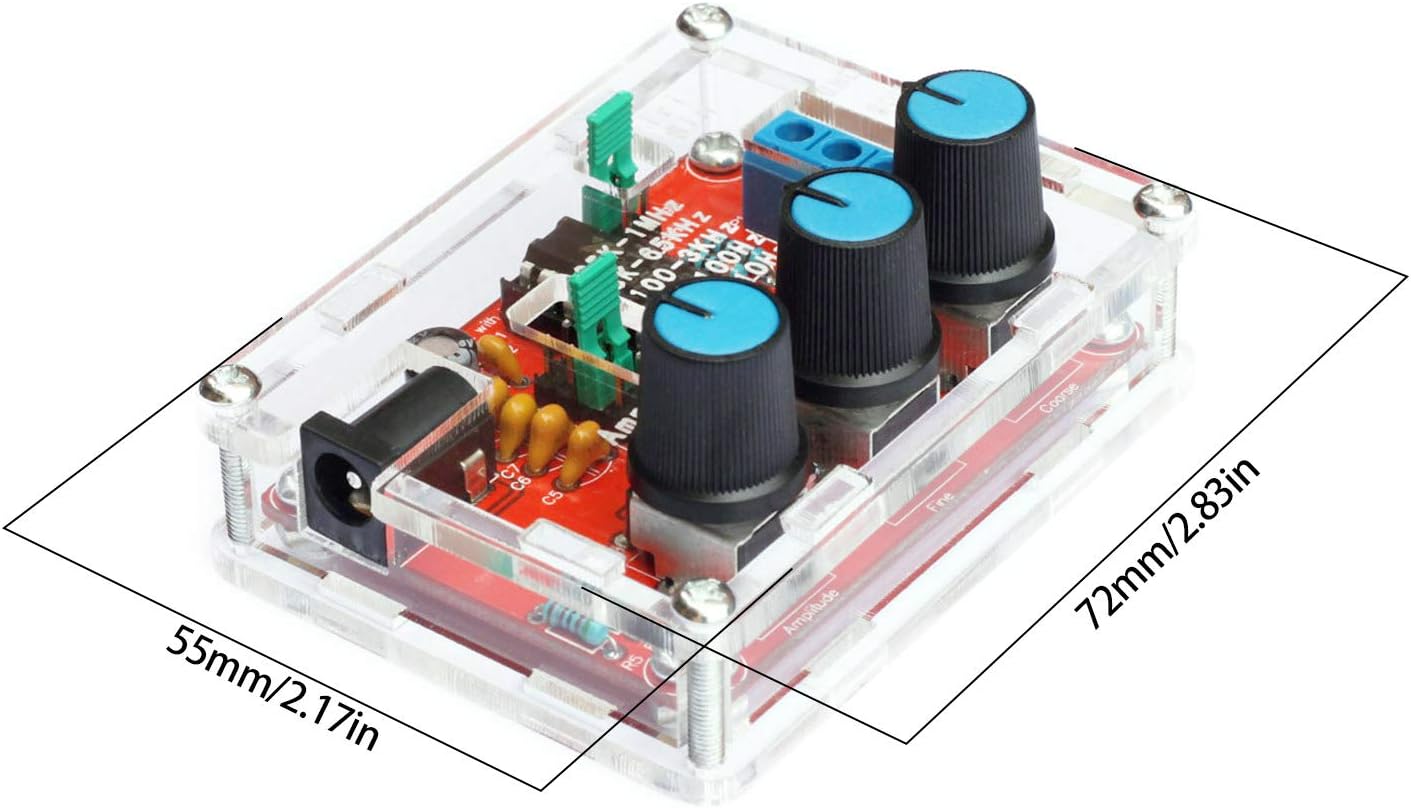

Item Descriptions:-[DIY Kit]: XR2206 high precision signal generator DIY parts, need to be assembled by yourself.-[High Resolution]: Five precision resolution,can produce sine wave, triangular wave, square wave.-[Sine Wave]: Amplitude: 0 - 3V at 9V DC input, Distortion: less than 1% (at 1kHz), Flatness: +0.05dB 1Hz - 100kHz-[Square Wave]: Amplitude: 8V (no load) at 9V DC Input, Rise Time: Less than 50 ns (at 1KHz), Fall Time: Less than 30 ns (at 1KHz), Symmetry: Less than 5% (at 1KHz)-[Triangle Wave]: Amplitude: 0 - 3V at 9V DC input, Linearity: Less than 1% (up to 100kHz) 10mA.-[Adjustability]: Adjustable frequency and amplitude, frequency adjustment with coarse tuning and fine tuning.-[Application]: It can be used to test or repair electronic equipment to strengthen the signal and adjust the frequency.Package:1x XR2206 High Precision Function Signal Generator DIY Kit1x User ManualItem Specifications:Voltage Supply:9-12V DC InputImpedance:600 Ohm+10%Frequency:1Hz to 1MHzWaveforms:Square,Sine,Triangle

• [DIY Kit]: XR2206 high precision signal generator DIY parts, need to be assembled by yourself.
• [High Resolution]: Five precision resolution,can produce sine wave, triangular wave, square wave.
• [Sine Wave]: Amplitude: 0 - 3V at 9V DC input, Distortion: less than 1% (at 1kHz), Flatness: +0.05dB 1Hz - 100kHz
• [Square Wave]: Amplitude: 8V (no load) at 9V DC Input, Rise Time: Less than 50 ns (at 1KHz), Fall Time: Less than 30 ns (at 1KHz), Symmetry: Less than 5% (at 1KHz)
• [Triangle Wave]: Amplitude: 0 - 3V at 9V DC input, Linearity: Less than 1% (up to 100kHz) 10mA.
