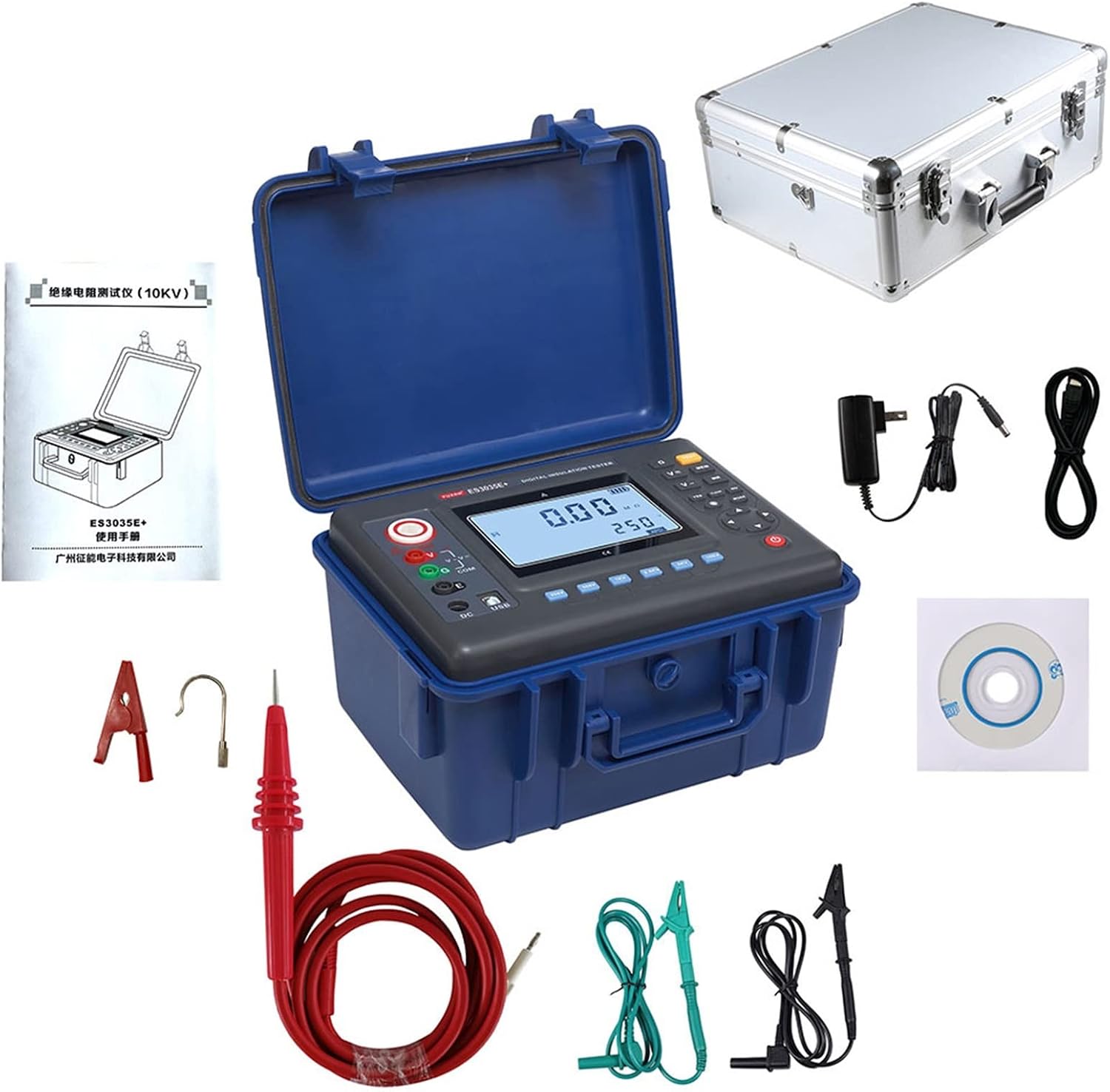

Insulation Resistance Tester, High-precision Ground Resistance Tester Digital Insulation Resistance Meter Megohmmeter 10kV ES3035E+

ES3035E+ Digital Insulation resistance meter, also name megohmmeter, high voltage insulation resistance tester, is used for insulation resistance test. This instrument has a large LCD screen gray backlit display, data storage, data review, alarm, Automatic discharge, charging, automatic shutdown and other functions. At the same time, it also has the function of measuring absorption ratio and polarization index of AC voltage and DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, Large output power, strong anti-interference ability.ES3035E+ Digital Insulation resistance meter also has a shockproof, dustproof, moisture-proof structure, and adapts to the harsh working environment. It is a commonly used and indispensable instrument for Telecommunications, electricity, weather, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.ES3035E+ Digital Insulation resistance meter is composed of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is more (has 5 voltage levels). Rated insulation test voltage range 250 ~ 10kV insulation resistance measurement range 0.01MΩ ~ 2000GΩ. DC voltage measurement range 0~1000V AC voltage measurement range 0~750VSpecification:Function：Insulation resistance test, voltage testBase conditions：23°C±5°C，below 75%rhRated voltage(V)：250；500；1000；2500；5000V；10KVTest voltage(V)：rated voltage×（1±10%）Insulation Resistance Range（GΩ）：0.01MΩ～2000GΩ accuracy±3%rdg±5dgtInsulation Resistance Insulation：0.01MΩDC Voltage Range：0～1000VDC Voltage resolution：0.1VAC Voltage Range：0～750VAC Voltage resolution：0.1VOutput short-circuit Current：≥5mA(10KV)Absorption Ratio and Polarization Index Measurement：HavePower Supply：12V rechargeable batteryBacklight：Controllable gray screen backlight, suitable for use in dim placesDispaly mode:4-bit large LCD display, gray screen backlightLCD display size:108mm×65mmInstrument size:L/W/H：277.2mm×227.5mm×153mmUSB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save the printCommunication Line:USB communication line 1PCTest line High voltage test line red 3 meter, black 1.5 meter, green line 1.5 meterData Storage:500 groups, "FULL" symbol indicates that storage is full Data Review:Data review function: "MR" symbol displayOverflow Display:Exceed measurement range overflow function: “OL ” symbol displayAlarm Function:Alarm when the measured value exceeds the alarm setting valuePower Consumption：Standby: 30mA Max(backlight off)Turn on backlight: 42mA MaxMeasure：200mA Max(backlight off)Instrument weight：2720g(including battery)Battery voltage：When the battery voltage is low, low battery symbol “ ”will displayAutomatic shut-down：automatic shutdown after 15 minutes bootInsulation Resistance：≥50MΩ(between Measuring line and housing)voltage withstand：AC3kV/50Hz 1minWorking Temperature and Humidity：－10℃～+50℃＜85%RHStorage Temperature and Humidity：－15℃～+55℃＜90%RHPackage List:Instrument：1PCHigh pressure rod：1PC redHigh voltage test line：2PCS（black,green each 1）Monitoring Software CD：1PCUSB communication line USB：1PCcharger：1PCManual, certificate：1SETInstrument box：1PC

• -Rated voltage: 250; 500; 1000; 2500; 5000V; 10KV (one-key voltage selection)
• -Resistance range: 0.01MΩ～2TΩ
• -DC voltage: 0～1000V
• -AC voltage: 0～750V
• -Short-circuit current: ≥5mA
• -Absorption ratio and polarization index measurement, with USB interface, can be connected to a computer, built-in lithium battery charging function
