2Pcs 3/4in NPT Spring Check Valve, Brass Non Return One Way Check Valve, Vertical Inline Water Backflow Preventer for Well, Pump, Tank (3/4" Male x 3/4" Male(DN20))
Product details
| Management number | 247466098 | Release Date | 2026/08/16 | List Price | US$8.40 | Model Number | 247466098 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Spring Check Valve】The inline check valve is designed to allow the flow of fluid in one direction while preventing backflow in the opposite direction. It with stainless steel spring, both vertical and horizontal installations are allowed.
- 【Material】Made from solid brass, the pump check valve offers excellent durability and corrosion resistance, making it suitable for long-term use in a wide range of industrial and residential applications.

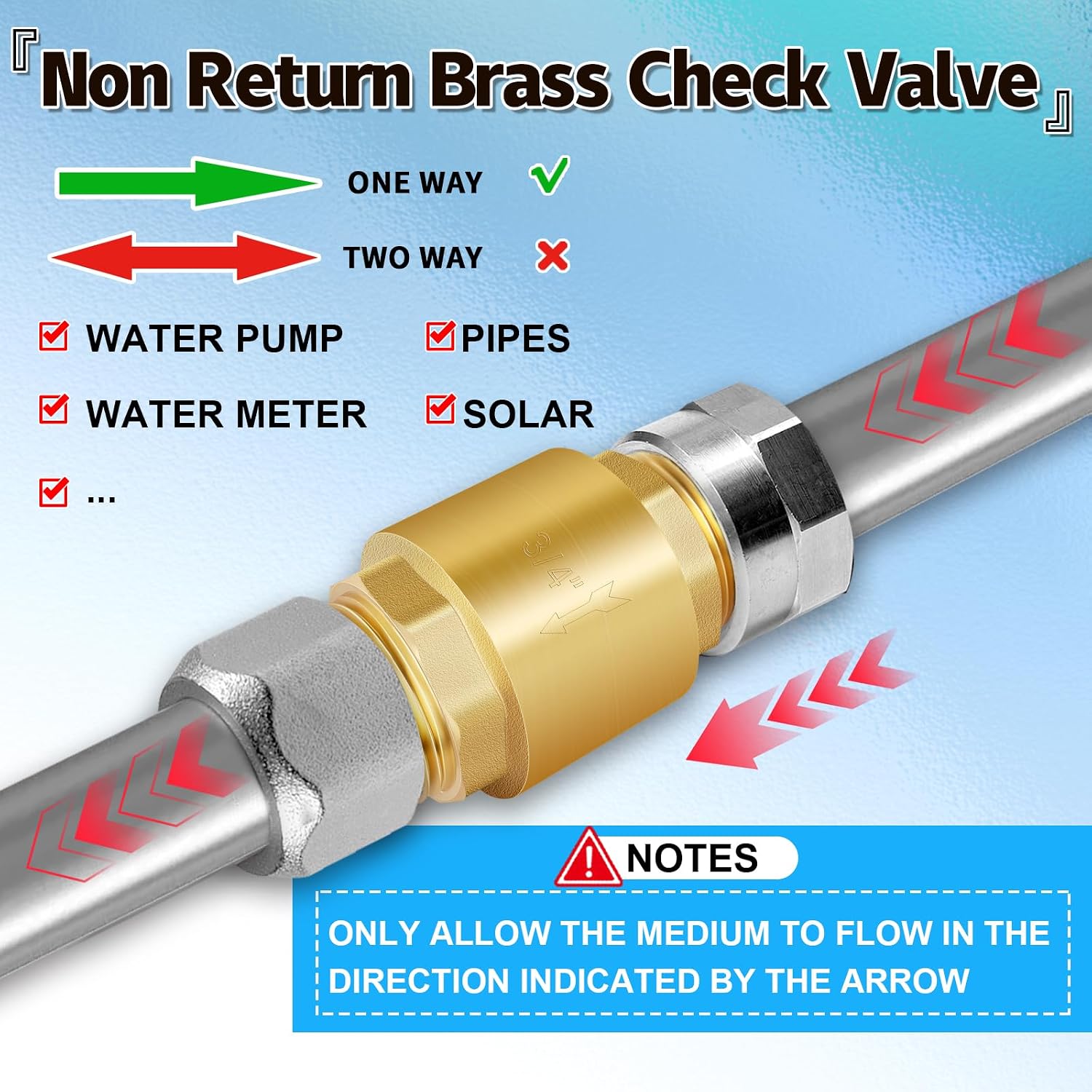

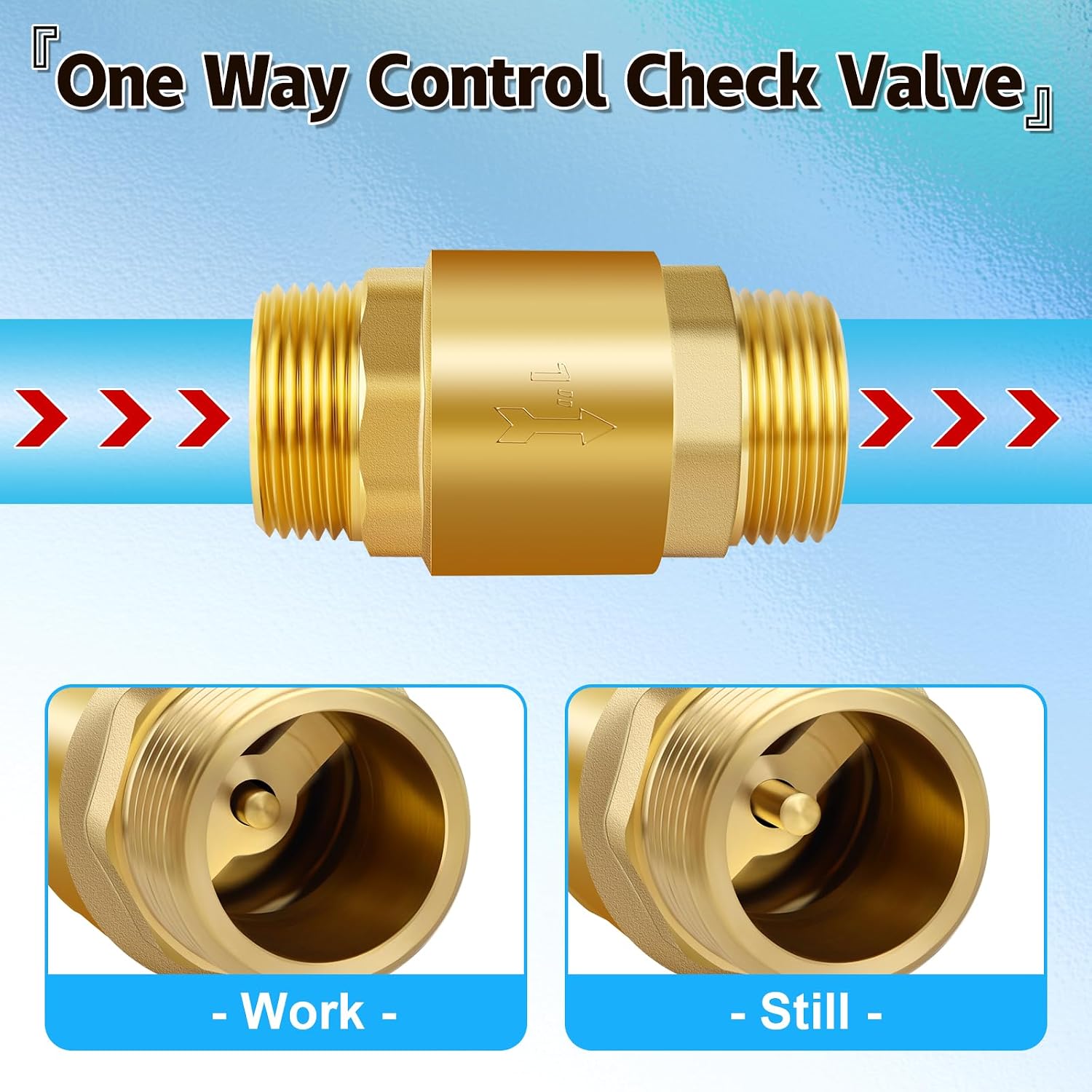

- 【Function】The check valve operates automatically using flow pressure to open and close the disc, allowing medium to move in one direction only. Compatible with water, oil, air, and other common media.
- 【NPT Connection】The thread of our non-return check valve is NPT which is taper thread, has a good sealing, the max pressure is 16bar (230 psi) , the working temperature from -20 ℃ to +121 ℃ (from -4℉ to 250℉) , ensuring it performs optimally even under challenging conditions.
- 【Application】3/4'' check valves are widely used in wells, water purifiers, pumps, solar energy, gas water heaters, faucets, etc, where reliable and efficient flow control is essential.
- 【Opening Pressure】This brass check valve is designed with an opening pressure of 45 PSI, ensuring reliable one-way flow control. It requires 0 minimum back pressure, making it efficient and dependable for a wide range of fluid systems.
| ASIN | B0DHTV1GHY |
|---|---|
| Size | 3/4" Male x 3/4" Male(DN20) |
| Set Name | Pack of 2 |
| Brand Name | Boltigen |
| Unit Count | 2 Count |
| Valve Type | Check Valve |
| Thread Size | 3/4 inch |
| Thread Type | NPT |
| Manufacturer | Boltigen |
| Model Number | BCVM |
| Material Type | Brass |
| Connector Type | Threaded |
| Exterior Finish | Brass |
| Item Dimensions | 1.5 x 1.5 x 0.5 inches |
| Number of Items | 2 |
| Number of Packs | 2 |
| Number of Ports | 2 |
| Maximum Pressure | 230 psi |
| Number of Pieces | 2 |
| Specification Met | ASME, ASTM, MSS SP 80, UL, IAPMO, RoHS, EPA, ANSI B16.11, ANSI B1.20.1, UPC, FM, MSS SP 67, ISO 9001, OSHA, CE, ASSE, API 609 |
| Included Components | Teflon tape |
| Inlet Connection Size | 0.75 inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.75 inches |
| Outlet Connection Type | NPT |
